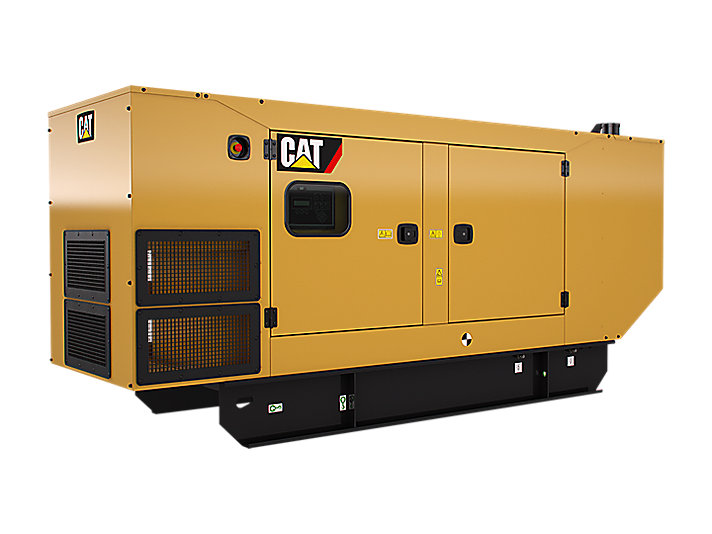

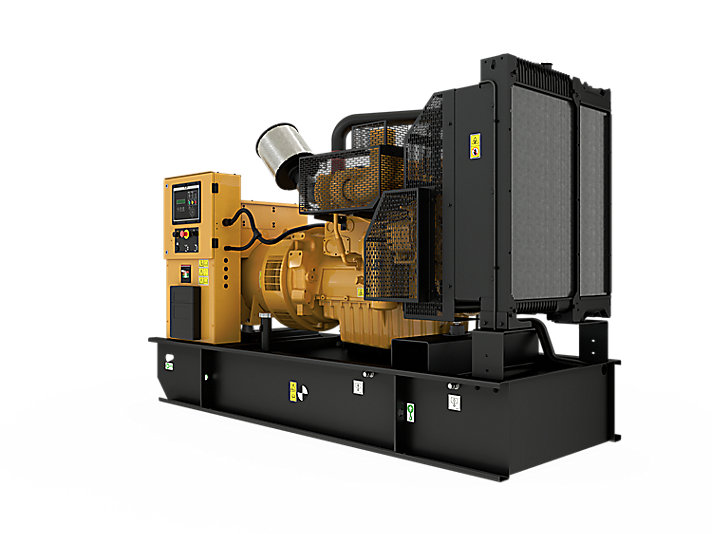

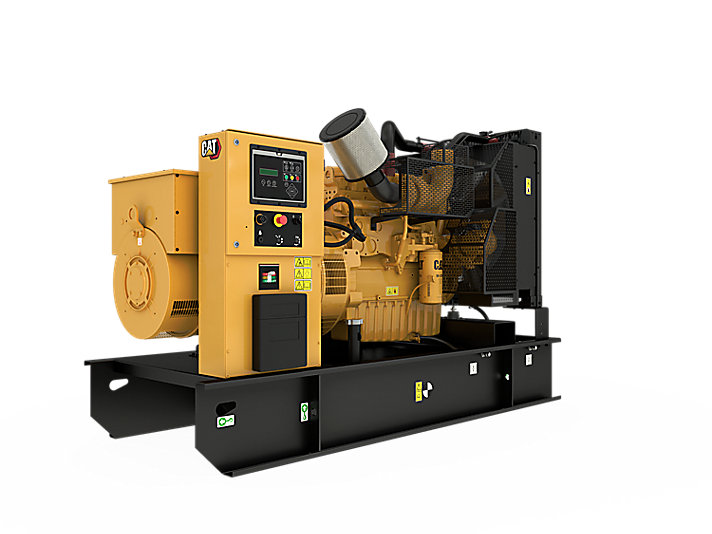

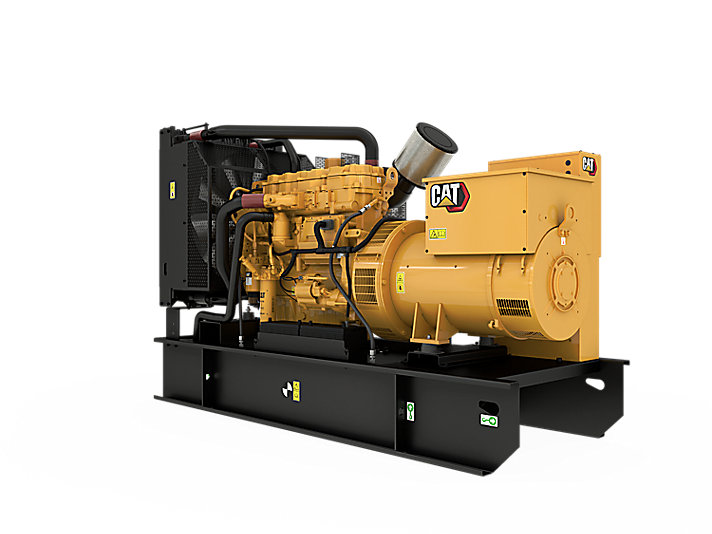

CATERPILLAR C9

Introducing the CATERPILLAR C9 generator, available for rental or hire, delivering outstanding performance and versatility. With a robust 300kVA capacity and an impressive 240kW power output, this generator is built to handle any temporary power demand. Whether you need reliable backup power for construction sites, events, or remote locations, the CAT C9 ensures consistent and efficient operation. Count on Caterpillar’s renowned reliability and durability to meet your temporary power needs with ease. Trust in the CAt C9 to provide uninterrupted power and exceptional performance for your rental or hire requirements.

  • 300

  • 240

Quantity

- +

The Caterpillar C9 generator is a reliable and powerful unit designed to provide efficient and continuous power supply. With a capacity of 300kVA (kilovolt-ampere) and 240kW (kilowatts), it is well-suited for a wide range of applications, including industrial, commercial, and residential use.

The C9 generator is equipped with a robust and fuel-efficient Caterpillar C9 diesel engine, known for its durability and performance. The engine’s advanced technology ensures optimal power output while minimizing fuel consumption, making it a cost-effective solution for long-term power needs.

The generator’s 300kVA capacity enables it to handle heavy loads and multiple electrical appliances simultaneously, making it suitable for demanding applications such as construction sites, data centers, hospitals, and large-scale events. Its 240kW capacity ensures a steady and reliable power supply, providing peace of mind during critical operations.

The C9 generator incorporates advanced control systems and safety features to ensure smooth operation and protect the equipment. It is designed to withstand harsh environmental conditions, including extreme temperatures, high humidity, and dusty environments, making it suitable for various locations and climates.

Maintenance and servicing of the C9 generator are made easy with Caterpillar’s extensive network of service centers and trained technicians. The generator’s components are built to last, reducing downtime and ensuring long-term reliability.

In summary, the Caterpillar C9 generator with a 300kVA capacity and 240kW capacity offers a dependable and efficient power solution for a wide range of applications. Its robust construction, advanced technology, and ease of maintenance make it a trusted choice for those seeking a reliable power source.

GENERATOR SET SPECIFICATIONS
Maximum Rating 330 kVA
Minimum Rating 230 kVA
Emissions/Fuel Strategy EU Stage IIIA
Voltage 220 to 480 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby, Prime
ENGINE SPECIFICATIONS
Engine Model C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Bore 112 mm
Stroke 149 mm
Displacement 8.8 l
Compression Ratio 16.1:1
Aspiration Air to Air Aftercooled
Fuel System Hydraulic electronic unit injection
Governor Type Adem™A4
GENERATOR SET DIMENSIONS
Length - Maximum 4300 mm
Width - Maximum 1410 mm
Height - Maximum 2165 mm
